| 1. |
Include auto demolding, new/old
moldbase exchanging, mold
release spraying, m/b , |
| |

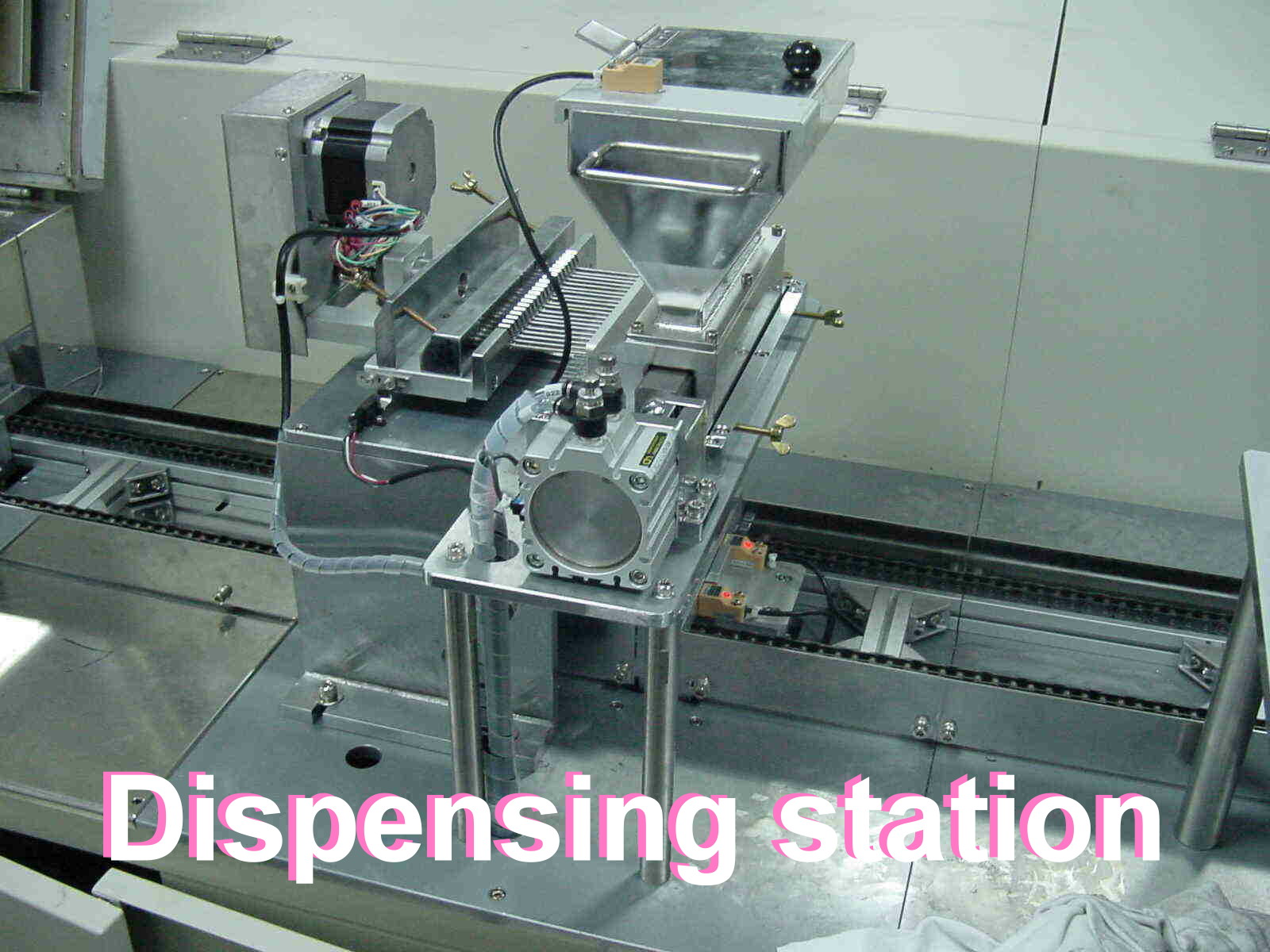

preheatingdispensing,

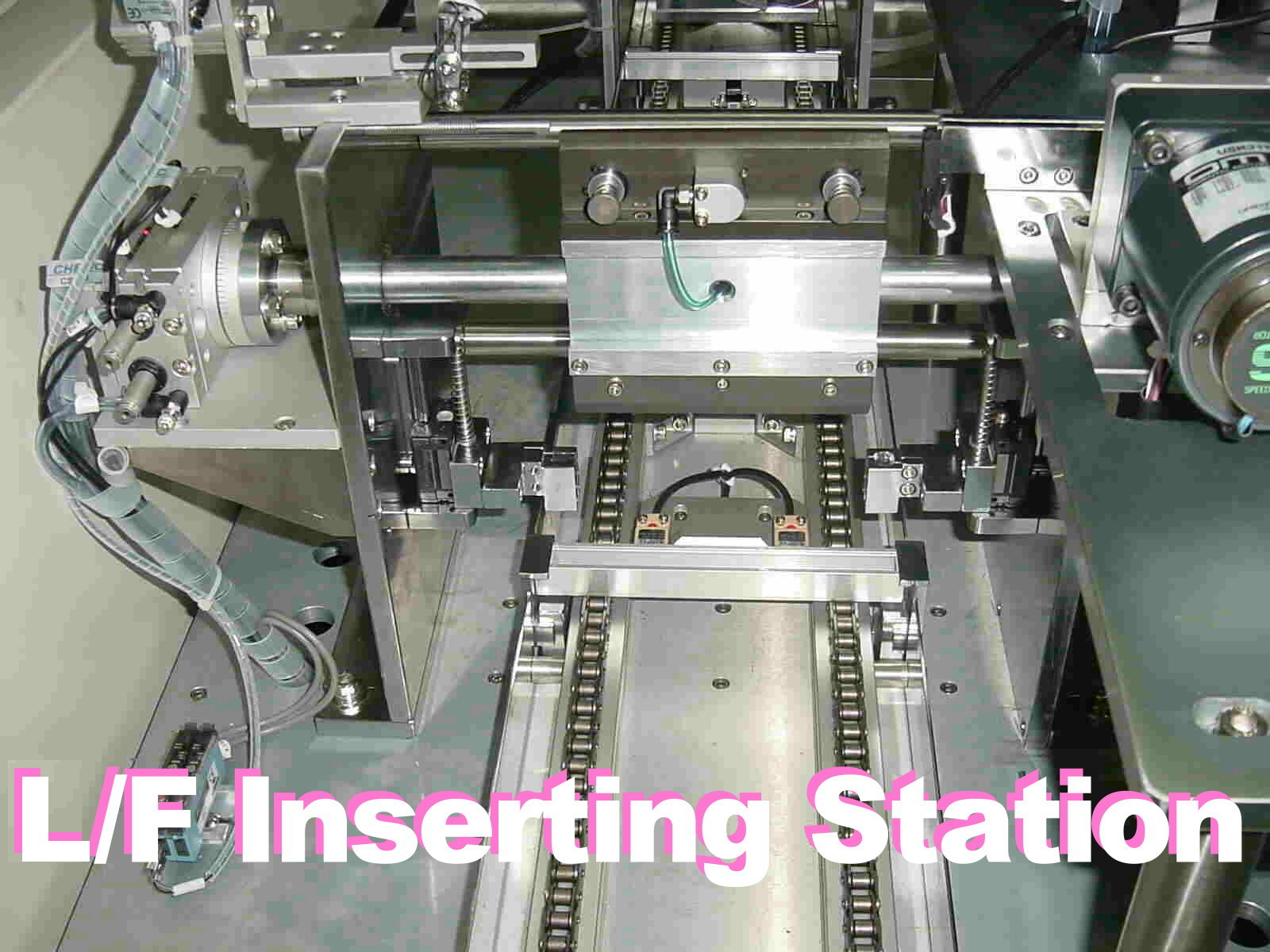

predip, L/F inserting, L/F repressing stations with prosperous |
|
function |
| 2. |
4-section independent temperature control, PID
temperature control with |
| |
high precision. ( ± 5ºC ). |
| 3. Efficient heating offer even hot-circulation to
prevent from contamination. |
| 4. Double-direction and double-track cycling mechanical
design to save space. |
| 5. Full series of original component with high
precision and durable life. |
| 6. Each independent work station operates conveniently
and easily.. |
| 7. Dispensing capacity displayed and programmed
digitally.. |
| 8. Modelized dispenser head and predip set are easy to
exchange. |
| 9. PLC control system with high precision and
development. |
| 10. M-M-I touch interface screen benefit to maintain the
machine. |
| 11. Type : Ø3,Ø5 ( 20, 30 ups ) |
| 12. PPH ≒ 7.5 K ( 20 ups ) / 11.5 K (30 ups ) |
